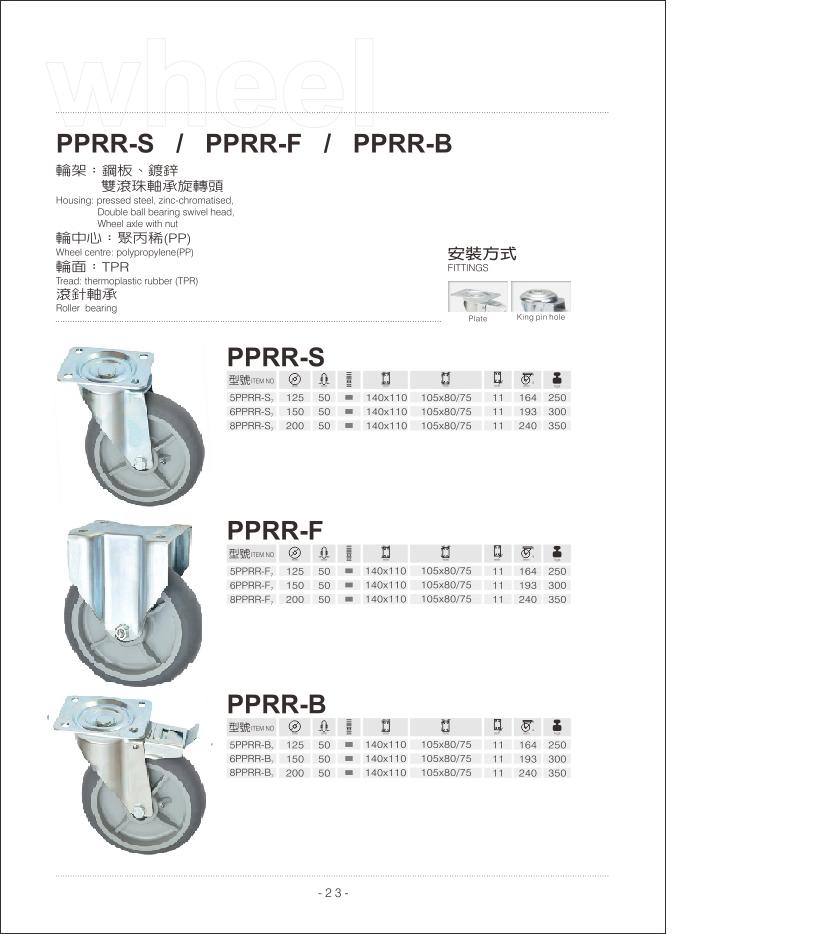

Product Name : PPRR-S / PPRR-F / PPRR-B
Product Description

PPRP SERIES CASTORS:

Specification:

Wheel diameter (mm)

125

150

200

Wheel width (mm)

50

50

50

Overall height (mm)

164

193

240

Capacity (kg)

250

300

350

Plate fitting (mm):

140 x 110

140 x 110

140 x 110

Hole centre (mm):

105x80/75

105x80/75

105x80/75

 Materials:

Housing:

Pressed steel; zinc-chromatised;double ball bearing swivel head; wheel axle with nut

Wheel centre:

Polypropylene (PP)

Tread:

Thermoplastic rubber (TPR)

Bearings:

Roller bearing

Inquiry
Product Introduction

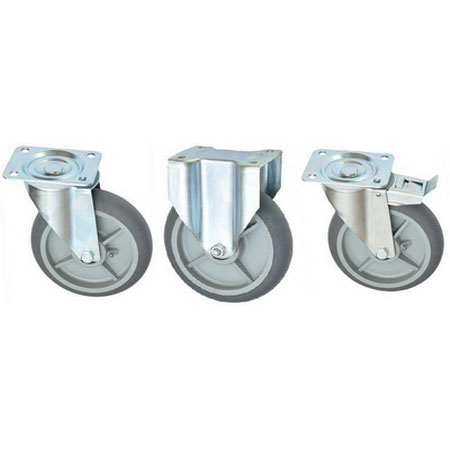

Housing: Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut. Material: Wheel center - polypropylene (PP) Tread - thermoplastic rubber(TPR)Roller Bearing.Non-marking.For trolleys; shelving; racks; machines; catering equipment or other applications.
