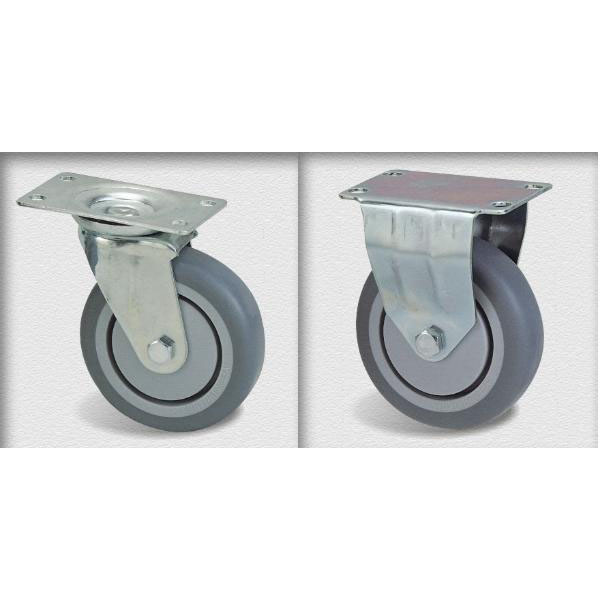

4PPRP-S1A / 4PPRP-F1A

4PPRP-S1A / 4PPRP-F1A
Product Name : 4PPRP-S1A / 4PPRP-F1A
Product Description

Specification:



Swivel Castor
4PPRP-S1A

 Rigid Castor
4PPRP-F1A

Wheel diameter (mm)

100

100

Wheel width (mm)

32

32

Overall height (mm)

124

124

Capacity (kg)

80

80

Plate Fitting (mm):

95 x 65

95 x 65

Hole Centre (mm):

40 x 82

40 x 82

Materials:

Housing:

Pressed steel; zinc-chromatised;double ball bearing swivel head; wheel axle with nut

Wheel Centre:

Polypropylene (PP)

Tread:

Thermoplastic rubber (TPR); with threadguards

Bearings:

Precision ball bearing

Inquiry
Product Introduction

Housing: Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut. Material: Wheel centre - polypropylene (PP).Tread - thermoplastic rubber (TPR); with threadguards. 6202 Precision ball bearing.Non-marking.For trolleys or other applications.
