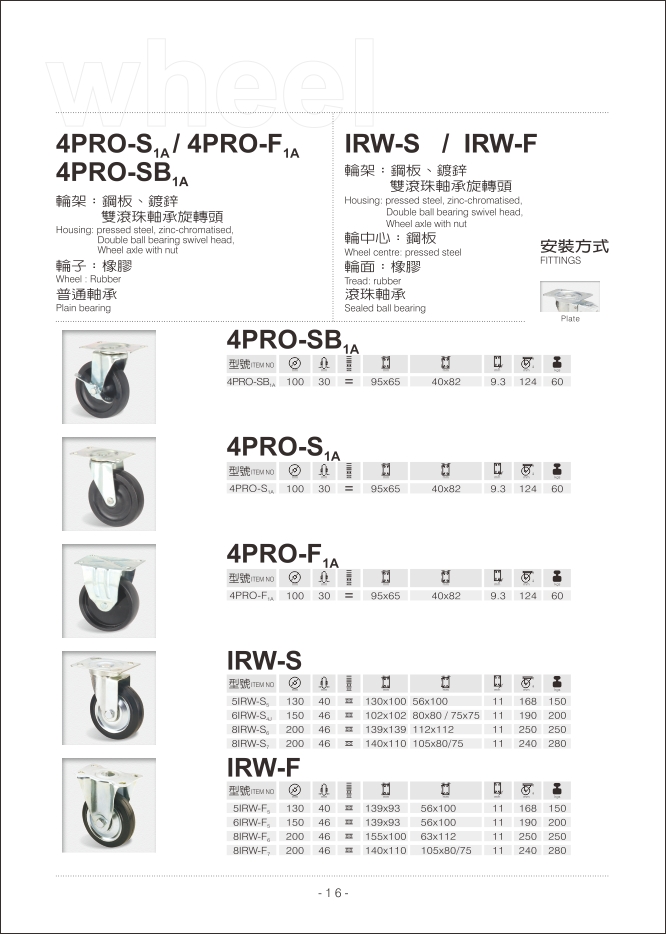

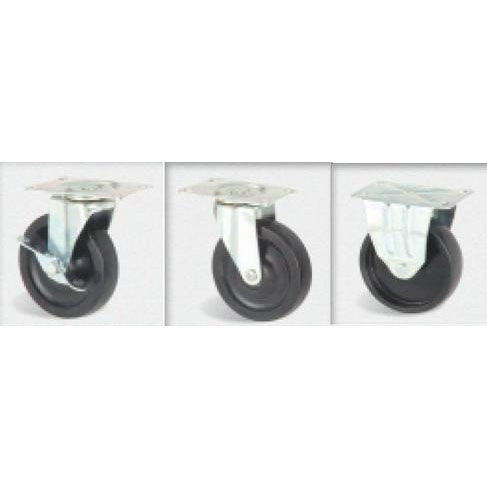

Search Products TROLLEY CASTER WHEEL RSS Product Message Subscribe Newsletters Send 4PRO-S1A / 4PRO-F1A / 4PRO-SB1A Home Products CASTER WHEEL Medium Duty (75-280 KG) Series 4PRO-S1A / 4PRO-F1A / 4PRO-SB1A Product Name : 4PRO-S1A / 4PRO-F1A / 4PRO-SB1A Product Description Specification: Swivel Castor4PRO-S1A Rigid Castor4PRO-F1A Brake Castor4PRO-SB1A Wheel diameter (mm) 100 100 100 Wheel width (mm) 30 30 30 Overall height (mm) 124 124 124 Capacity (kg) 60 60 60 Plate Fitting (mm): 95 x 65 95 x 65 95 x 65 Hole Centre (mm): 40 x 82 40 x 82 40 x 82 More available fittings: threaded screw and bolt with circlip. (Optional) Materials: Housing: Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut Wheel: Rubber Bearings: Plain bearing Q'ty : Inquiry Product Introduction Housing: Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut. Wheel: rubber.Plain bearing.For trolleys or other applications. Back
